• First year’s output sold out shortly after launch
  • Mix of innovations and tried-and-tested engineering
  • Most successful model: the Mercedes-Benz 240 D

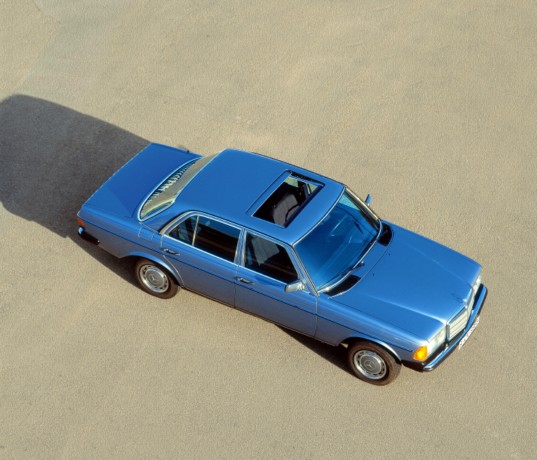

The series was first introduced to the public in January 1976. Its internal designation was 123. The saloon body variant was used for the premiere; in keeping with tradition it had a “W” put in front of it: W 123.

Preparations for production already commenced in summer 1975; in the end, production would run over ten years and bring forth a total of 2,389,140 saloons. The most successful model was the Mercedes-Benz 240 D, of which, in all, 448,986 units were manufactured. There were also estates, coupés, and saloons with extended chassis.

Soon after the presentation the first year’s output was sold out; in 1976 young used cars of the series often fetched the price of a new car. Because of the long delivery times (among other reasons), Mercedes-Benz continued to build the previous model parallel to the new model for a whole year.

Design featuring classic lines

Classic body lines placed the 123 series in the tradition of its predecessor (the 115/114 series, dubbed “Stroke 8”); they gave the new car modern elegance, a spirited but dignified look, and natural authority.

This was no automotive revolutionary strutting out before the public, but a completely mature car of the upper mid-size category in which up-to-date technology and tried-and-tested engineering merged with the brand values. Experts and customers alike gave the model a very warm welcome. In various ways the design of the 123 series pointed towards the future: technically, with numerous innovations in the area of safety; and aesthetically, with a design that took its cue from the looks of the new S-Class W 116 and the R/C 107 SL models.

Expressions of this were the horizontally configured headlamps, for example, instead of the previous classic vertical lamps. The 123 series impressed with the high standard of its workmanship, its functionality, and particularly its wide range of body variants and engines.

Gains in safety and comfort

Greater safety, improved comfort and better serviceability: these were the demands made of the Mercedes-Benz design engineers when the specifications for the new model series were drawn up in 1968.

Almost eight years later it was apparent that the experts from Stuttgart had accomplished their task in a convincing manner. It was precisely the high level of safety engineering and the mature overall design that secured this model the attention of the trade press and the customers from the very beginning.

In developing the new model the design engineers set particular store on an even higher level of safety for the occupants. This was a topic of increasing debate in the 1970s and resulted in new regulations. On 1 January 1976, the Federal Republic of Germany made the wearing of seat belts for front seat passengers compulsory.

In keeping with this trend, vehicle development focused on restraint systems and passenger compartments designed to minimise sources of injury. The engineers also considered integrating airbags, but these were not installed until 1982 as an optional extra in the 123 series.

Innovations and tried-and-tested technology

In technical terms the 123 series was an entirely new design, but was modelled both on its predecessor (115/114 series) and the S-Class of 1972 (116 series). From the “Stroke 8” series the new model adopted in particular the engines, though with one exception: the newly designed 2.5-litre six-cylinder engine of the Mercedes-Benz 250 (M 123).

Features borrowed from the S-Class included the double-wishbone front suspension, in which the steering swivel axes of the wheels were aligned so that their imaginary extension coincided with the contact patch of the tyre on the roadway. This neutral setting (zero scrub radius) ensured that the wheels would not be deflected inwards or outwards during braking.

The double-wishbone front suspension meant the elimination of the subframe, which had been introduced in the “Ponton” and presented the engine, transmission and front suspension as a unified whole. At the rear of the 123 was a diagonal swing axle, which had proven its value in the 115/114 series.

Occupant safety was served particularly by the combination of an even sturdier passenger compartment with large crumple zones: the front and rear ends of the vehicles were designed for controlled deformation in a collision to absorb appreciably more impact energy than was the case in earlier designs.

The central section of the body, the so-called safety cell (patented in 1951 as “shape-retaining occupant compartment surrounded by energy absorbing zones at the front and rear”), had even more stability owing to the incorporation of stronger box sections in the roof frame and the six roof pillars. Stronger door beams ensured better impact protection.

The steering column of the 123 series was also optimised with a view to the driver’s safety: a corrugated tube connected the jacket and the steering gear with each other. In an accident, the corrugated tube could buckle in different directions.

This reduced the danger of the steering column penetrating into the passenger compartment (lance effect). This and the rigid passenger compartment with crumple zones were inventions of Béla Barényi, the pioneer of passive vehicle safety at Mercedes-Benz. Installation in the 123 series marked the premiere of the safety steering column, patented in 1963, as a complete system.

1976: Intermediate class with new face

When Mercedes-Benz put the new intermediate class saloon on the market in 1976, its place in the current Stuttgart model generation was recognisable at a single glance. Like the S-Class W 116 and the SL of the 107 series, the W 123 had horizontal headlamps instead of the upright configuration of earlier days.

The great majority of models illuminated the roadway with round headlamps in pairs behind a common rectangular lens. In 1976 this was the first hint of the “four-eyed” face of the 1995 E-Class (210 series) and its successor of 2002 (211 series). Only the top-of-the-range versions 280 and 280 E had rectangular halogen wide-band headlamps at the premiere of the 123 series. In the 1982 facelift these rectangular lamps were then introduced for all versions and all body variants.

The lines of the saloon, from which the other body variants derived, impressed in 1976 by integrating up-to-date elements while paying regard to the established concept: draft designs during the planning period had put forward many variations for consideration, but neither the large roof-level rear spoilers nor the fastback concepts got beyond the drawing board. At the premiere of the new model the 123 series was offered not only as a saloon, but as a chassis too, in keeping with Mercedes-Benz tradition.

Mainly Binz (Lorch) and Miesen (Bonn) built ambulances on this basis; hearses were created by Pollmann (Bremen), Rappold (Wülfrath), Stolle (Hanover) and Welsch (Mayen). The chassis with standard wheelbase (2.80 metres) were given the series number F 123 and initially offered as the 240 D and 230. The extended chassis with a wheelbase of 3.43 metres (VF 123) were initially available as 240 D, 300 D and 250.

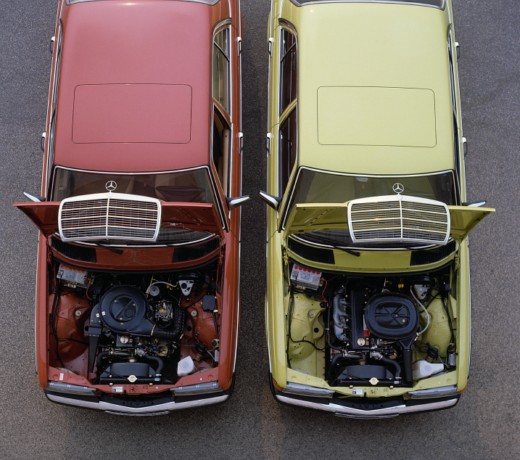

Four or six cylinders?

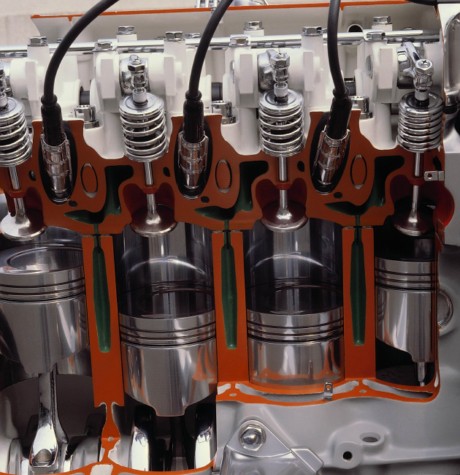

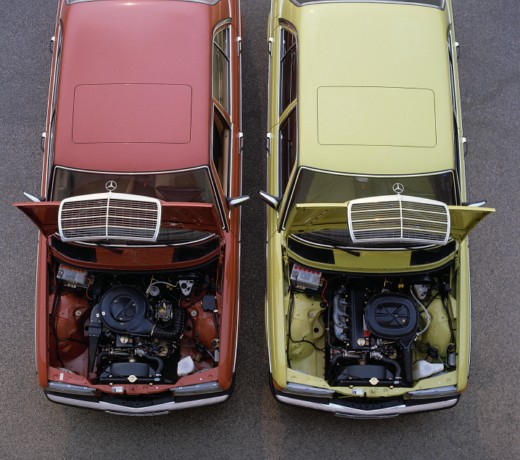

The creators of the 123 series also fell back on proven technology for the engines. Solely the new 2.5-litre six-cylinder M 123 in model 250 (95 kW) was newly developed for the premiere. The other eight models of the first year featured engines which had already powered the “Stroke 8”: the in-line four-cylinder M 115 was used in the 200 (69 kW) and 230 (80 kW); the top-of-the-range 280 (115 kW) and 280 E (130 kW) models were amply powered by the M 110 in-line six-cylinder (as carburettor and injection engines).

The diesel models 200 D (40 kW), 220 D (44 kW) and 240 D (48 kW) featured the four-cylinder engine OM 615; the 300 D model (59 kW) was powered by the five-cylinder OM 617.

As early as 1978 Mercedes-Benz thoroughly revised this engine range. Up to the termination of the 123 series the power of the individual models increased owing to improved drive units. The 200 model (now with 80 kW) even got a new engine, the M 102, in 1980.

This engine was also fitted as an injection unit in the 100 kW 230 E model. An outstanding new power plant was the turbocharged five-cylinder diesel OM 617, which was included in the series in 1981 for the 300 D Turbodiesel model (92 kW). In the United States this turbocharged compression-ignition engine was offered in all body variants; in Germany, however, the 300 D Turbodiesel model was available solely as an estate.

1977: Three new variants in one year

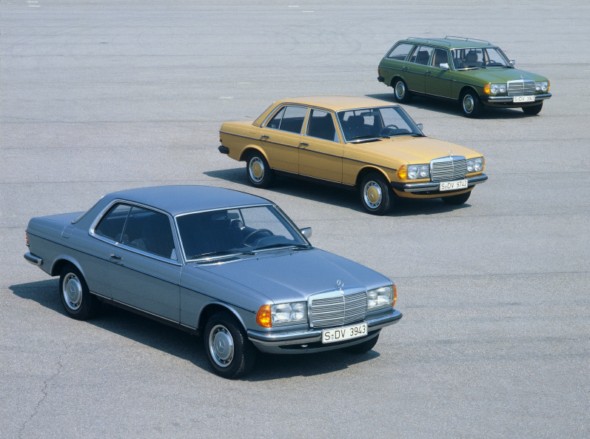

Enthusiasm for the 123 series increased further in 1977. This was the year in which Mercedes-Benz presented three additional body variants: the coupé, the long-wheelbase saloon, and for the first time in the brand’s history a factory-built estate. By expanding its model range the brand forcefully demonstrated the versatility of the new model series. Compared with its predecessor, the coupé was much more independent of the saloon in its design. And the estate inaugurated an entirely new body variant in series production at Mercedes-Benz.

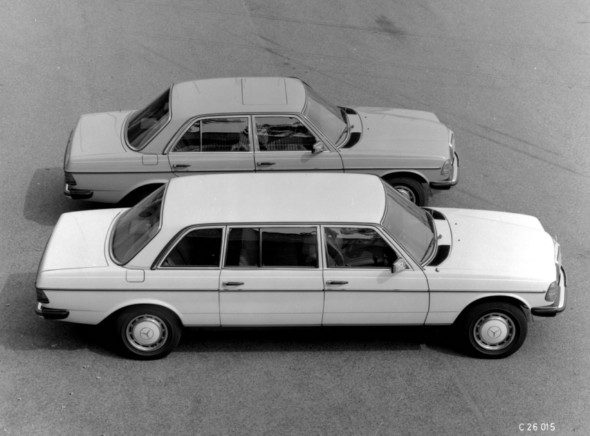

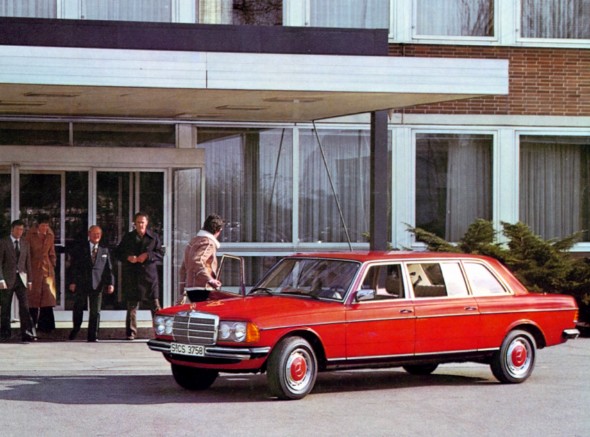

1977: Long-wheelbase saloon

In August 1977 Mercedes-Benz introduced the long-wheelbase version of the intermediate class saloon: the wheelbase of the V 123 (3.43 metres) was 63 centimetres longer than that of the saloon (2.80 metres).

That provided enough space for a third seat bench and made the car a comfortable taxi, company car or hotel limo for seven passengers. The 250, 240 D and 300 D models were offered with long wheelbase. Whereas the “tailfin” eight-seater saloon was limited to one very economical diesel engine (model 200 D long), the 123 series with three powerful versions of the long-wheelbase saloon followed the trend set by the “Stroke 8”.

Despite its imposing proportions and powerful engines, the long-wheelbase saloon was not mainly intended as a representational vehicle. An indication of this was that the diesel engines were still in the majority as against the petrol engine of the 250 model. Rather, this body variant served as a sophisticated touring car for several passengers.

Operating for hotels and trade fair companies and as a large-capacity taxi, the V 123 impressed with its high degree of ride comfort and great spaciousness. Many characteristics of this body variant later were adopted by well-equipped vans.

Turbodiesel premiere and facelift for the 123 series

During the production life of the 123 series, the output of various models was improved on several occasions and new models were added. In 1980 the new M 102 engine superseded the old M 115; in the 200 model the new four-cylinder developed 80 kW as a carburettor engine; in the 230 E that replaced the old 230, the in-line four-cylinder – here for the first time equipped with petrol injection – managed 100 kW.

In October 1980 Mercedes-Benz presented a car with a turbocharged diesel engine for the first time in Germany. The 92 kW 300 TD Turbodiesel had the same engine as the 300 D Turbodiesel saloon and the 300 CD Turbodiesel coupé, both of which were built exclusively for the US market.

At its 1980 launch, with a basic price of DM 37,200 the Turbodiesel was almost the most expensive production model of the 123 series. Only the 280 CE coupé model cost more (basic price DM 100 higher). Appropriately enough, the car with the turbocharged diesel power plant had the more upscale appointments, including rectangular wide-band headlamps and chromed air inlet grilles in front of the windscreen.

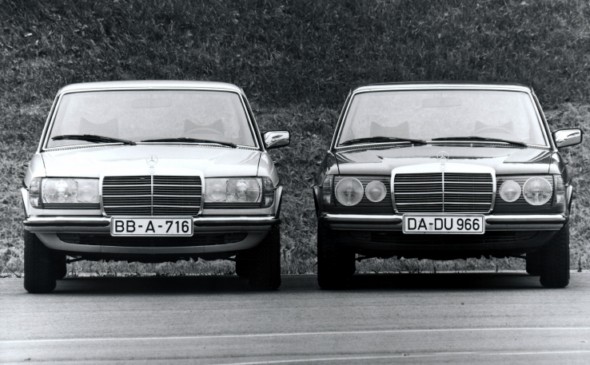

In September 1982 a previous distinguishing feature of the smaller models of the 123 series, the round twin headlamps, was discontinued. All variants were equipped with the rectangular wide-band headlamps familiar from the 280 and 280 E models as part of an extensive model refinement package. The numerous other improvements included changed wind-deflecting mouldings on the
A-pillars and power steering as standard.

Versatile: special versions of the 123 series

The 123 series often served as a basis for different bodies and conversions. For the purposes of the police, fire and rescue services there were modified saloons and estates. Companies like Binz and Miesen built ambulances on chassis. Other bodies and conversions – hearse, pickup, convertible – were created by outside bodybuilding firms. Finally, for taxi operation Mercedes-Benz offered the saloon, the estate and the long-wheelbase saloon ex factory with the appropriate specifications.

Various specially tuned versions of the 123 series were offered during its production life by companies like AMG, Brabus or Lorinser. The measures ranged from optical changes to the body with the help of paint, side skirts and various light-alloy wheels to modifications of the suspension for lowering the body, tauter damping, and camber changes on both axles. Other possibilities for sports-related improvement included optimisation programmes for production engines or the installation of more powerful engines.

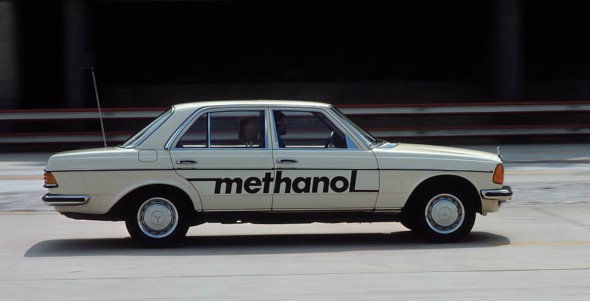

The W 123 series and alternative drive systems

Mercedes-Benz began looking into alternative drive technologies at a very early stage. This purpose was repeatedly served by 123 series vehicles used by the engineers as test mules for methanol, hydrogen and electric drive systems.

From volume model to classic

Production of the saloon ceased in November 1985. As with the transition from “Stroke 8” to the 123 series, the new 124 series was built parallel to the old model for almost a year. Production of the 123 series ran from 1975 to 1986, with a total of just under 2.7 million vehicles being built. At 2,389,140 units, saloons made up the lion’s share. The most successful saloon model was the 240 D model with 448,986 units. The most successful petrol-engined saloon model was the 230 E with 245,588 units.

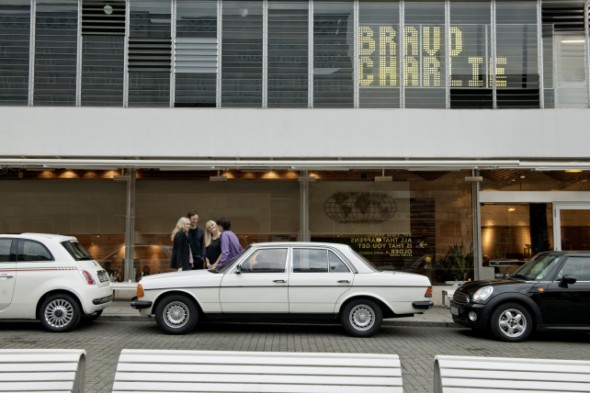

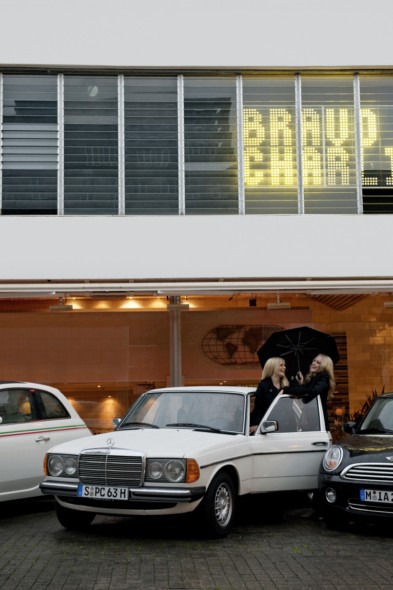

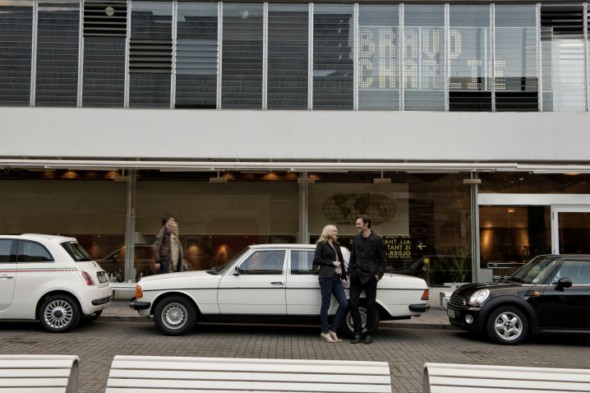

Modern classics: the saloons of the Mercedes-Benz 123 series (1975 – 1985)

  • The cars of the 123 series remain stars on the roads of this world through today
  • A perfect everyday vehicle owing to outstanding qualities

Stuttgart – The saloons of the 123 series are everyday Mercedes-Benz icons. Even today there is hardly a country that does not have a substantial number of these vehicles still on the road – despite the fact that the last units rolled off the assembly line back in 1985.

In Germany, for example, there are still around 33,000 of them; in the USA, easily 106,000, and in Italy about 13,300 (as of September 2009). This speaks for the longevity of the series, in every respect: it set standards for quality, comfort, safety and design in its day – and still satisfies on every count. A person who drives a 200 D, 230 or 280 E saloon today can still experience all the values of the Mercedes-Benz brand in the car.

The saloons, internally designated W 123, are therefore classic cars with workaday qualities. At the same time the vehicle makes the emphatic statement that where mobility is concerned its owner prefers long-term investment to short-lived consumption. Even among the “internet generation” a modern classic from Mercedes-Benz radiates decidedly more coolness than a modish small car.

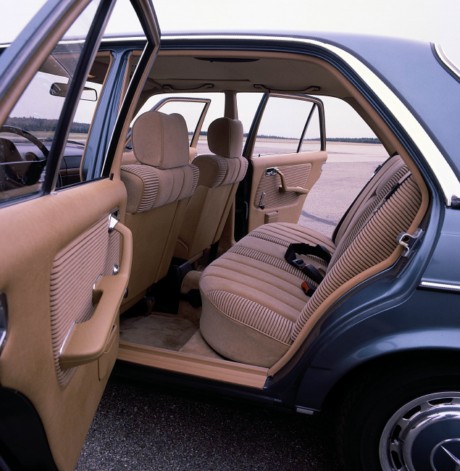

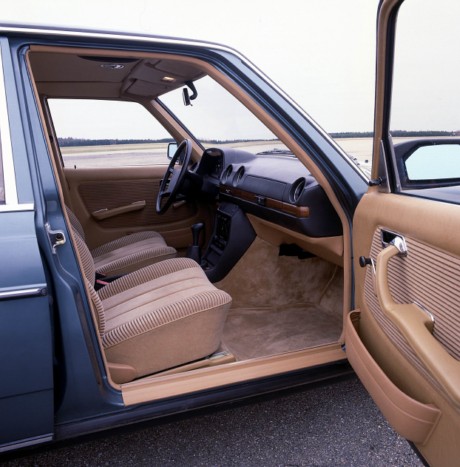

The balanced overall characteristics make the series one of the most comfortable cars of the upper mid-size category of its period. Out on the road in urban traffic or over long distances, one still maintains a high standard of travel in this car. The design, whose classic lines radiate a great timelessness, is one reason. And every model is endowed with fully fledged everyday suitability.

The broad engine range extends from the smallest diesel in the 200 D model with 40 kW to the petrol-engined 280 E with 130 kW. Catalytic converters can be retrofitted on most petrol-engined models so that they can get a green particulate emissions sticker valid in Germany.

The Mercedes-Benz engineers set great store by safety in designing the 123 series. Numerous examples can be cited: the double-wishbone front suspension from the S-Class with its neutral setting (zero scrub radius) ensures that the wheels are not deflected inwards or outwards during braking. A sturdy passenger compartment with large crumple zones affords greatest possible safety to the occupants.

The design of the steering column of the 123 series reduces the danger of the column penetrating into the passenger compartment. And the fuel tank is located over the rear axle, which gives it the best possible protection in an accident. For the first time in the upper mid-size category, the anti-lock braking system ABS and the airbag were available in the 123 series.

Value retention instead of loss of value

Driving a classic car can be quite attractive even financially. Crucial to any calculation are, first, an acceptable purchase price and a good condition of the vehicle. The rest is calculable; estimating roughly, if one buys a well-maintained Mercedes-Benz 230 E for 8000 euros instead of the latest small car for 15,000 euros, sufficient financial scope remains to pay, for example, the higher motor vehicle tax for years to come.

Possible repairs also can be paid for out of the difference. But the biggest advantage of a modern classic is that, if properly serviced and well cared for, its value at least stays the same, i.e., there is practically no further depreciation, and in many cases even rises over the years.

The excellent spare parts supply by Mercedes-Benz helps maintain the car: almost every part can be procured through a Mercedes-Benz dealer and the company’s own ordering system, usually with overnight delivery.

And a number of authorised workshops even have been designated Classic Partners – they boast outstanding expertise for working with older vehicles. Though especially where modern classics are concerned, every Mercedes-Benz-owned sales and service outlet, and the partners as well, still possess a high degree of specialist know-how. The “lifelong service” slogan doesn’t apply to all the vehicles of the brand for just any reason.

Models Internal designation Production period:preproduction to end Number of units
Saloon

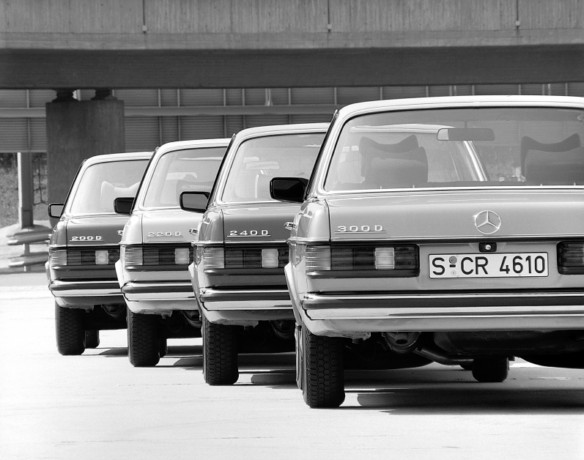

200 D W 123 D 20 1976 – 1979 378 138
220 D W 123 D 22 1976 – 1979 56 736
240 D W 123 D 24 1976 – 1985 448 986
300 D W 123 D 30 1976 – 1985 324 718
200 W 123 V 20 1976 – 1980 158 772
230 W 123 V 23 1976 – 1980 195 920
250 W 123 V 25 1976 – 1985 114 796
280 W 123 V 28 1975 – 1981 33 206
280 E W 123 E 28 1975 – 1985 126 004
200 (M 102) W 123 V 20 1980 – 1985 217 315
230 E W 123 E 23 1980 – 1985 245 588
300 D Turbodiesel* W 123 D 30 A 1981 – 1985 75 261
Long-wheelbase saloon
240 D long V 123 D 24 1977 – 1985 3 841
300 D long V 123 D 30 1977 – 1985 4 679
250 long V 123 V 25 1977 – 1985 5 180
Total number of saloons 2 389 140

* Export to North America and Japan


Modern classics: the saloons of the Mercedes-Benz 123 series

The cars of the 123 series remain stars on the roads of this world through today

Stuttgart – The saloons of the 123 series are everyday Mercedes-Benz icons. Even today there is hardly a country that does not have a substantial number of these vehicles still on the road – despite the fact that the last units rolled off the assembly line back in 1985.

In Germany, for example, there are still around 33,000 of them; in the USA, easily 106,000, and in Italy about 13,300 (as of September 2009). This speaks for the longevity of the series, in every respect: it set standards for quality, comfort, safety and design in its day – and still satisfies on every count. A person who drives a 200 D, 230 or 280 E saloon today can still experience all the values of the

Mercedes-Benz brand in the car

The saloons, internally designated W 123, are therefore classic cars with workaday qualities. At the same time the vehicle makes the emphatic statement that where mobility is concerned its owner prefers long-term investment to short-lived consumption. Even among the “internet generation” a modern classic from Mercedes-Benz radiates decidedly more coolness than a modish small car.

The balanced overall characteristics make the series one of the most comfortable cars of the upper mid-size category of its period. Out on the road in urban traffic or over long distances, one still maintains a high standard of travel in this car. The design, whose classic lines radiate a great timelessness, is one reason. And every model is endowed with fully fledged everyday suitability

The broad engine range extends from the smallest diesel in the 200 D model with 40 kW to the petrol-engined 280 E with 130 kW. Catalytic converters can be retrofitted on most petrol-engined models so that they can get a green particulate emissions sticker valid in Germany.

The Mercedes-Benz engineers set great store by safety in designing the 123 series. Numerous examples can be cited: the double-wishbone front suspension from the S-Class with its neutral setting (zero scrub radius) ensures that the wheels are not deflected inwards or outwards during braking. A sturdy passenger compartment with large crumple zones affords greatest possible safety to the occupants.

The design of the steering column of the 123 series reduces the danger of the column penetrating into the passenger compartment. And the fuel tank is located over the rear axle, which gives it the best possible protection in an accident. For the first time in the upper mid-size category, the anti-lock braking system ABS and the airbag were available in the 123 series

Driving a classic car can be quite attractive even financially. Crucial to any calculation are, first, an acceptable purchase price and a good condition of the vehicle. The rest is calculable; estimating roughly, if one buys a well-maintained Mercedes-Benz 230 E for 8000 euros instead of the latest small car for 15,000 euros, sufficient financial scope remains to pay, for example, the higher motor vehicle tax for years to come.

Possible repairs also can be paid for out of the difference. But the biggest advantage of a modern classic is that, if properly serviced and well cared for, its value at least stays the same, i.e., there is practically no further depreciation, and in many cases even rises over the years

The excellent spare parts supply by Mercedes-Benz helps maintain the car: almost every part can be procured through a Mercedes-Benz dealer and the company’s own ordering system, usually with overnight delivery. And a number of authorised workshops even have been designated Classic Partners – they boast outstanding expertise for working with older vehicles.

Though especially where modern classics are concerned, every Mercedes-Benz-owned sales and service outlet, and the partners as well, still possess a high degree of specialist know-how. The “lifelong service” slogan doesn’t apply to all the vehicles of the brand for just any reason.
