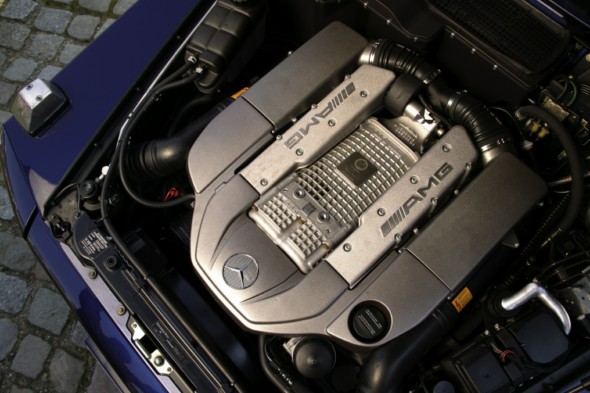

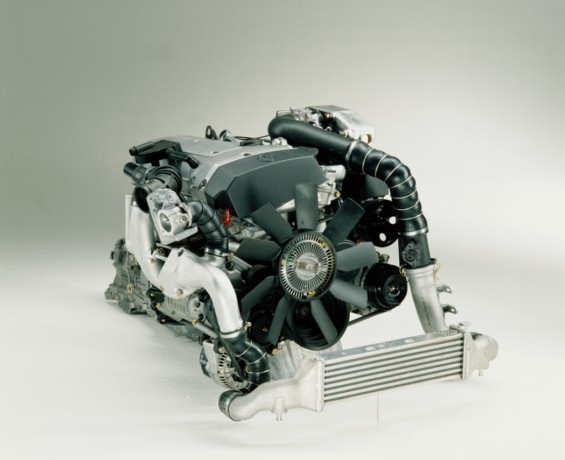

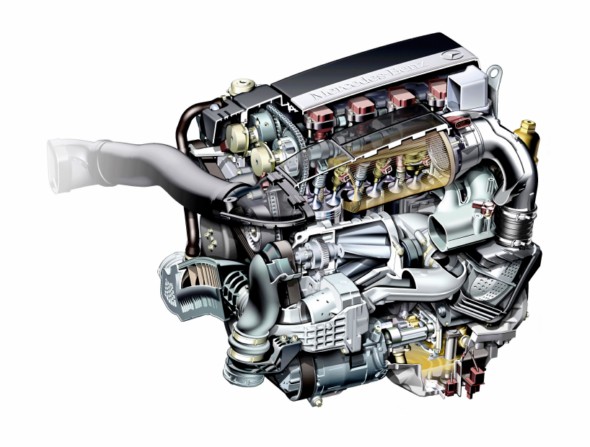

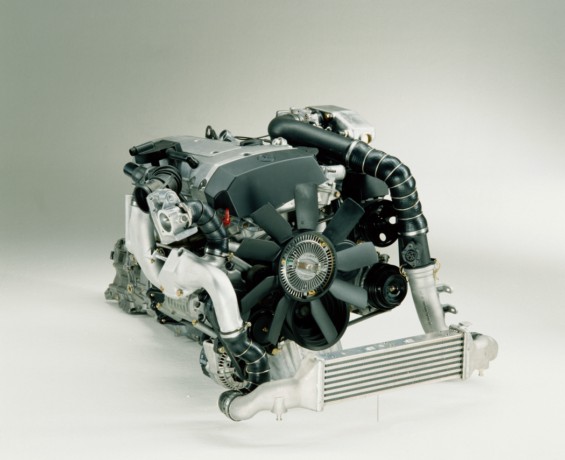

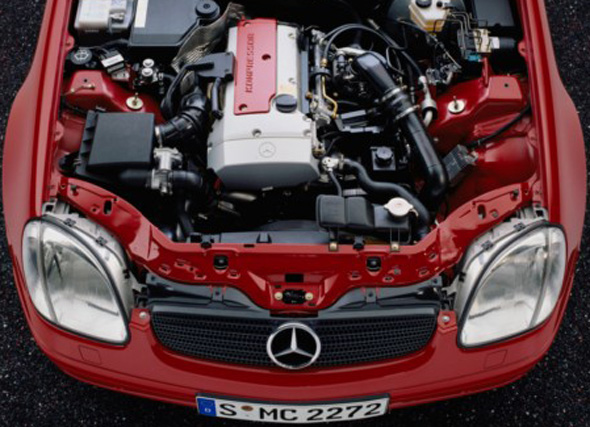

The supercharger of the 2.0-litre and 2.3-litre engines e.g. in the E-Class (W210) or the SLK (R170) is located between the air cleaner and the intake manifold.It is driven directly by the crankshaft by means of a separate poly-V-belt.

A96F2176_1046645

The belt-driven supercharger functions as a type of fan which produces pressure back in the intake system.

705165a2001f5798_807255

It does this by compressing the incoming air which then quickly exceeds the engine’s normal intake capacity; this creates a build-up of air which then becomes tightly compressed before it has even reached the cylinders.

This generates the so-called boost pressure, one of the fundamental criteria for more efficient cylinder charging and more effective engine aspiration.

D96F3048_1092353

Owing to the optimal air throughput and the improved cylinder charging, the supercharged engine develops far greater torque than a comparable naturally aspirated engine.

111367006c372_004_827327

And what’s more, thanks to the belt-driven supercharger, the engine succeeds in combining the torque characteristics of a six-cylinder engine with the fuel economy of a four-cylinder engine.

Together with specialists from the Eaton company, Mercedes engineers have redeveloped the belt-driven supercharger and made numerous improvements to it.

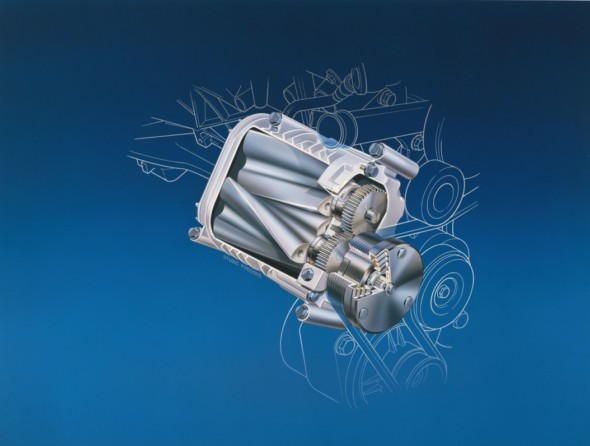

These include, for instance, a special plastic coating on both of the three-blade rotors inside the oval supercharger housing, which are offset by 60 degrees and rotate at speeds of up to 14,000 rpm without making contact with each other.
