Mercedes W108 S-Class 1965 – 1972

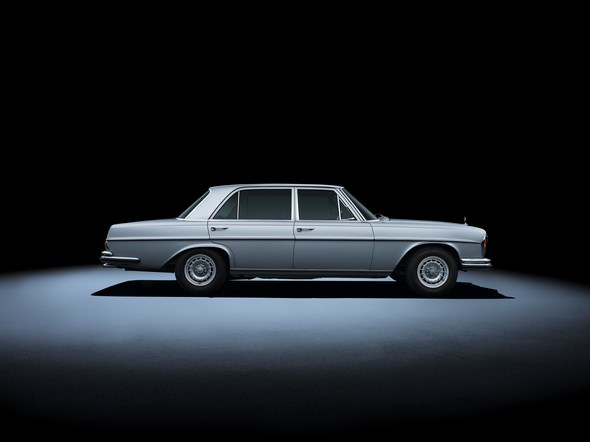

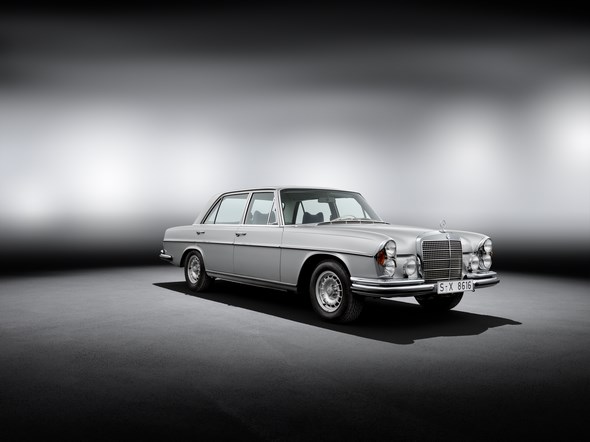

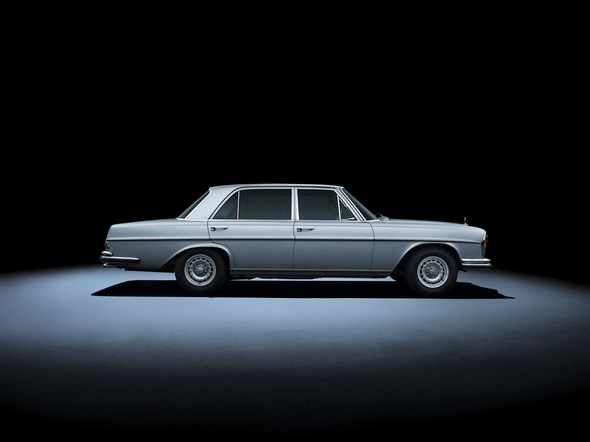

Mercedes-Benz 280 SEL 3.5 (W 108, 1965 bis 1972). Im Bild ein Fahrzeug aus dem Jahr 1972.

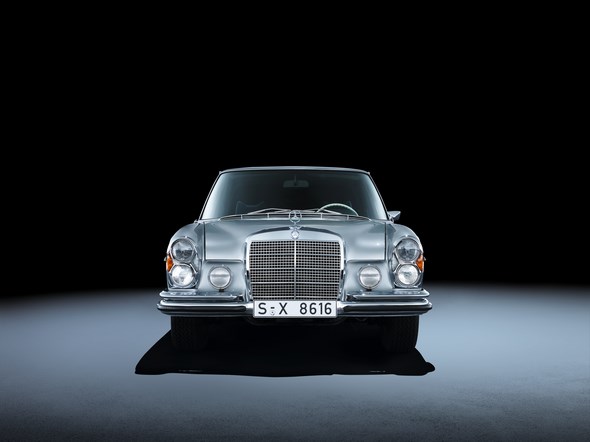

Mercedes-Benz 280 SEL 3.5 (W 108, 1965 bis 1972). Im Bild ein Fahrzeug aus dem Jahr 1972.

In August 1965, another generation of top-class models was presented with the Types 250 S, 250 SE and 300 SE, which succeeded the fintail types 220 Sb, 220 SEb and 300 SE.

What all three models had in common was its body, which had been designed by Paul Bracq.

Its main charm was the simplicity of form, which avoided all fashionable detail, and its restrained elegance, which even today, kept its timeless essence.

From a technical point of view, all models closely corresponded to their predecessors.

Apart from the new body, there were new two 2.5-liter engines, which had been developed from the 2.2-liter aggregatens by reboring them and by increasing the stroke of the piston.

In the injection engine version, a six-piston pump was used instead of the two-piston pump. In contrast to its predecessor, the new 300 SE was no longer fitted with ais suspension.

Mercedes-Benz 280 SEL 3.5 (W 108, 1965 bis 1972). Im Bild ein Fahrzeug aus dem Jahr 1972.

Like the two 2.5-liter models, however, it had a hydropneumatic compensating spring at the rear axle instead of the former coil spring which maintained the level of the body at a constant level, irrespective of loads.

In March 1966, the Type 300 SEL was added to the model range.

Compared to the 300 SE model, it had a wheelbase, which was extended by 100 mm. The additional space was used for increased leg room in the rear and wider rear doors for easier access.

As had been the case with its direct predecessor with the same model designation, air suspension was part of the standard equipment of the 300 SEL, too.

Mercedes-Benz 280 SEL 3.5 (W 108, 1965 bis 1972). Im Bild ein Fahrzeug aus dem Jahr 1972.

Internally, the models with conventional suspension were bracketed together in W 108 series; the 300 SEL with air suspension, however, was assigned to an independent model series W 109.

Two very special versions of the 300 SEL have been developed in Sindelfingen between 1966 and 1967. However, they were not designed for batch production but made to a very special order of the Vatican.

In June 1966 a landaulet with standard wheelbase was completed, which was distinguished from the serial sedan by a single seat in the rear as well as by the landaulet-hood, extending to the front edge of the rear door.

Almost one year later, in may 1967, two identical six-seated limousines were ready for delivery with both being based on a chassis prolonged by 650 mm and comprising modified rear side doors as well as two folding rear seats.

While the landaulet was used alongside the 600 model for His Holiness, the Pullman limousine was used for the transportation of guests.

Production of the models 250 SE and 300 SE was stopped at the end of 1967; as their successors in January 1968 the Types 280 S and 280 SE were presented; they were distinguished from their predecessors only by a different engine and other equipment details.

The new 2.8-liter 6-cylinder engine delivered 140 hp in its carburettor version and 160 hp with fuel injection.

A more powerful version of the injection engine with 170 hp was not only built into the 280 SL, but from January 1968 into the 300 SEL, too, where it replaced the former 3.0-liter light-alloy engine. In March 1968 the 300 SEL 6.3 became top of the class of this model series.

It was equipped with the V8-engine and the automatic gearbox of the 600 model so that its power was equal to that of a high-level sportscar.

Its presentation at the Geneva Motor Show created a sensation, especially since there had been no hints, that a model like this was to be forthcoming.

From outside, the 6.3 could only be recognised by its broader tires, double halogen headlights and additional distance beam headlights.

Even though it cost over DM 10.000 more than a 300 SEL and twice as much as the 280 SE, many customers were interested in the 300 SEL 6.3, so that 6,526 units were produced.

In Autumn 1969, the 300 SEL with 2.8-liter 6-cylinder engine was replaced by the 300 SEL 3.5, which was powered by a completely new “small” V8-engine with 3.5 liter cubic capacity and 200 hp.

From March 1971 this new engine were also used in the 280 SE 3.5 and 280 SEL 3.5 models, which had conventional steel-spring suspension.

The 280 SE with 6-cylinder engine was still available, whereas the 280 SEL was taken out of the sales programme to make room for the 8-cylinder model.

Parallel to the 3.5-liter V8-engine, a more powerful version with a cubic capacity of 4.5 liters was produced exclusively for the American market.

From May 1971 export models 280 SE 4.5, 280 SEL 4.5 and 300 SEL 4.5 were available with this type of engine. A special 108/109 series model, which was never sold on the market, a security version of the 280 SEL 3.5 was built in 1971.

As no further special protection cars had been produced by Daimler-Benz following the completion of the bullet-proof 600 Pullman limousine, several federal authorities put forward a request to that effect.

Due to attacks carried out on diplomats in Latin America in 1970, the foreign office saw the necessity to give special protection to certain ambassadors’ and consuls’ cars.

The result of these efforts was the armour-plated version of the 280 SEL 3.5, 28 of which were built between May 1971 and September 1972.

Production of the very successful W 108/109 series ended in September 1972. It was succeeded by the 116 series S-Class models.

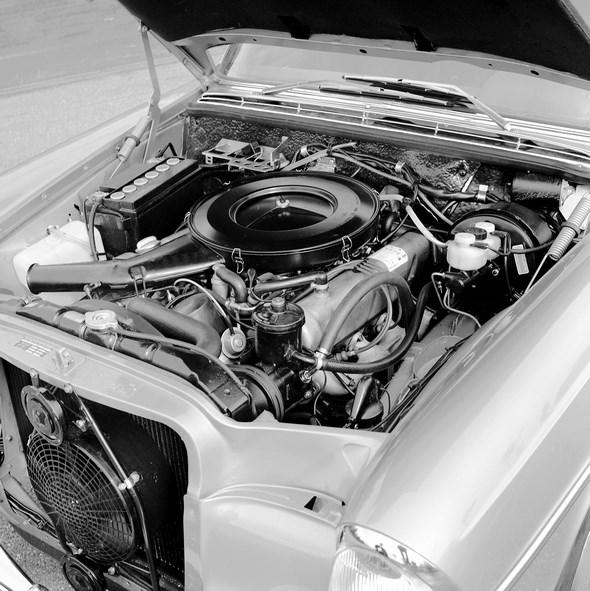

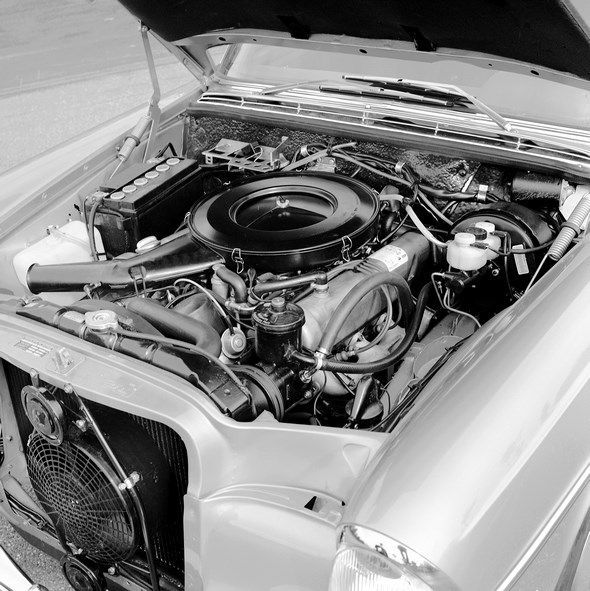

Mercedes-Benz Typ 280 SE bzw. SEL 3.5-Liter, 1971 - 1972. Motortyp M 116 E 35

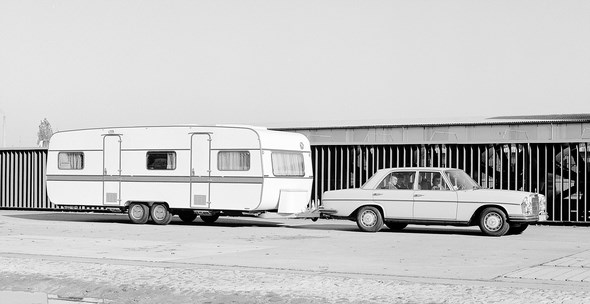

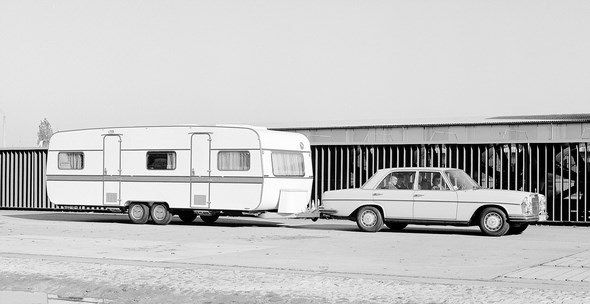

Mercedes-Benz Typ 280 SE 3,5 Liter aus dem Jahre 1970, als Zugwagen mit Tandemachser Eriba 700 auf der Versuchsstrecke der Daimler-Benz AG in Stuttgart-Untertürkheim.

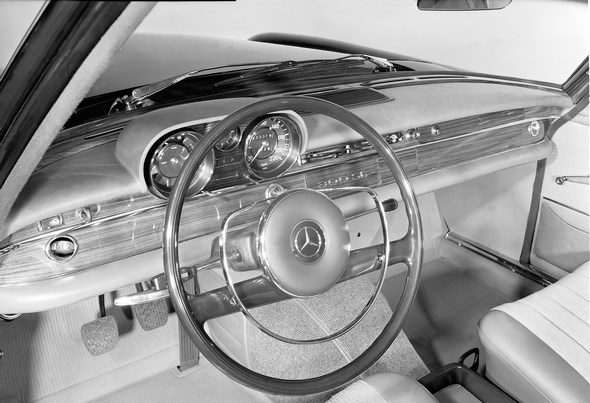

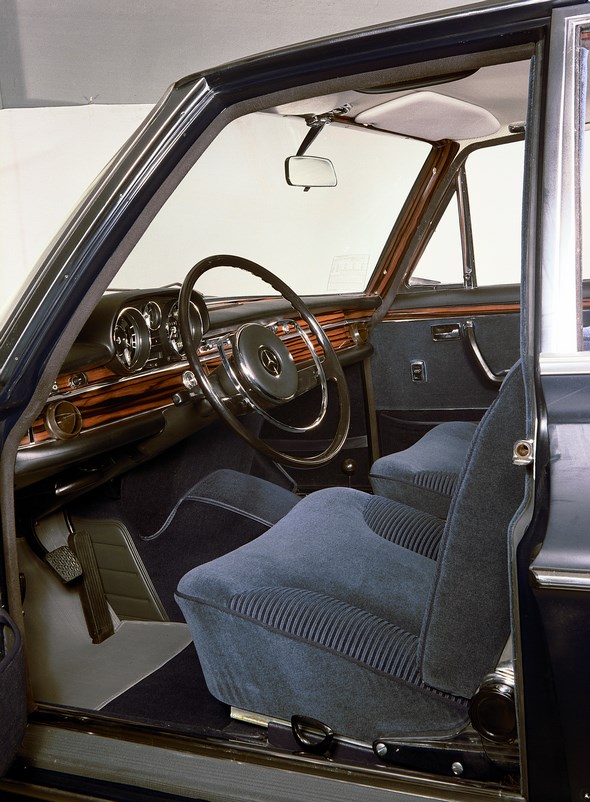

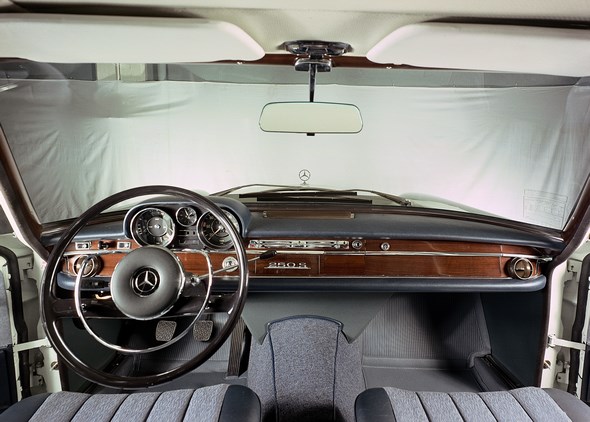

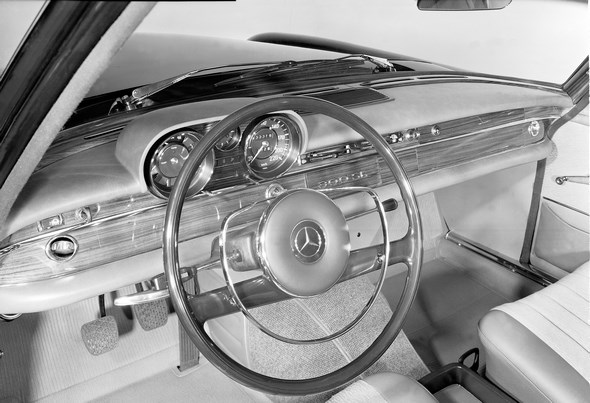

Mercedes-Benz Typ 300 SE, 1965-1967. Armaturen

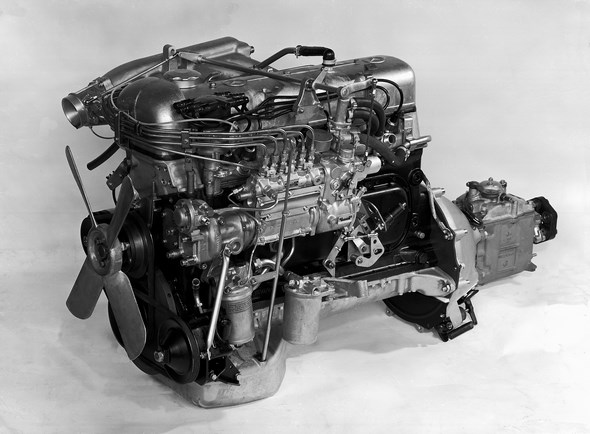

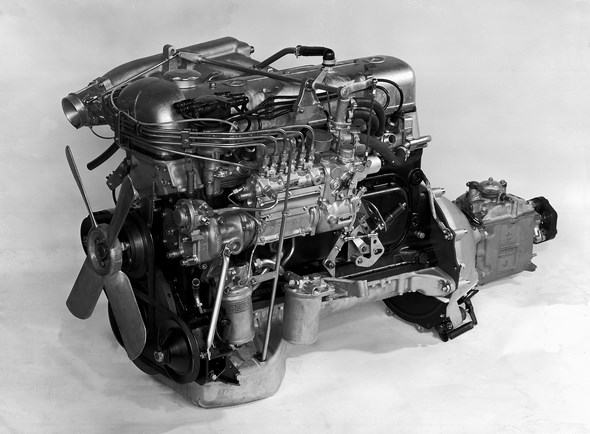

Mercedes-Benz Motor Typ 300 SE, 1965 bis 1967

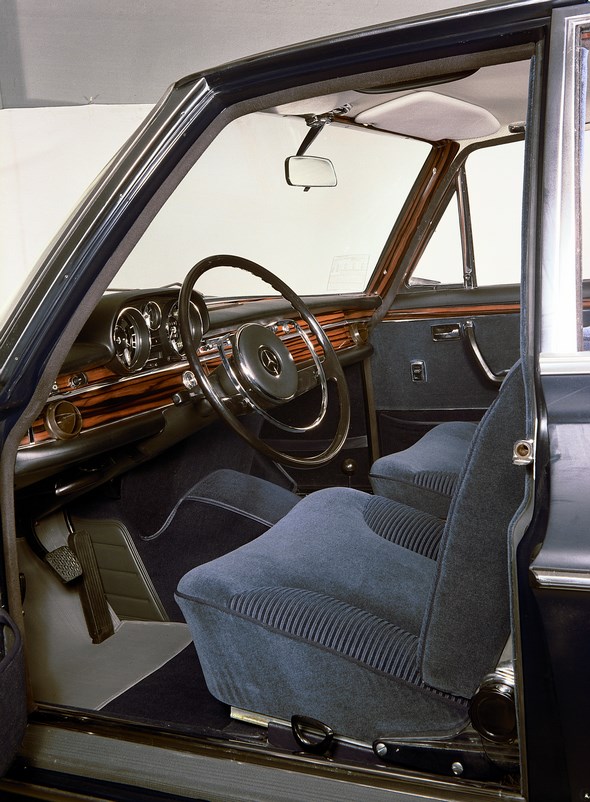

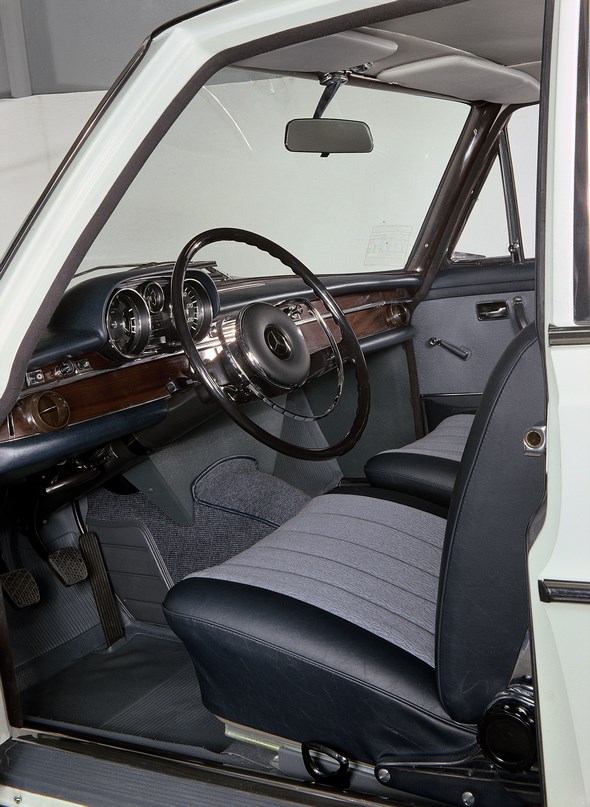

Mercedes-Benz Typ 250 S der Baureihe 108 II

Mercedes-Benz Typ 250 S der Baureihe 108 II

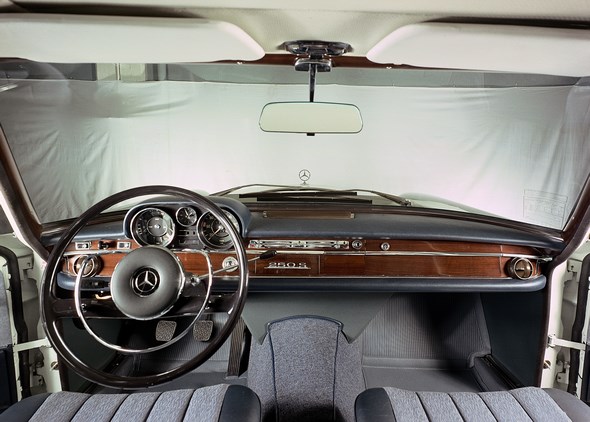

Mercedes-Benz Typ 250 S

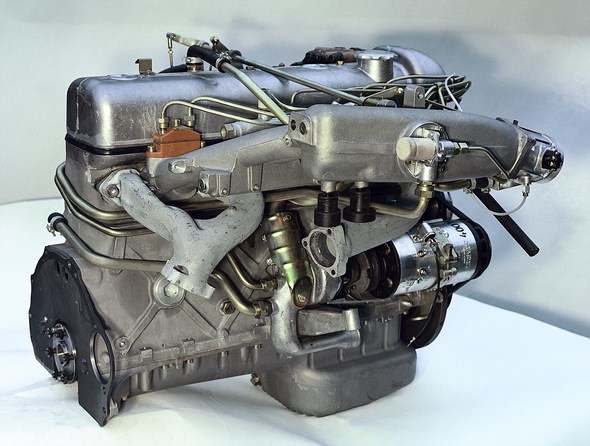

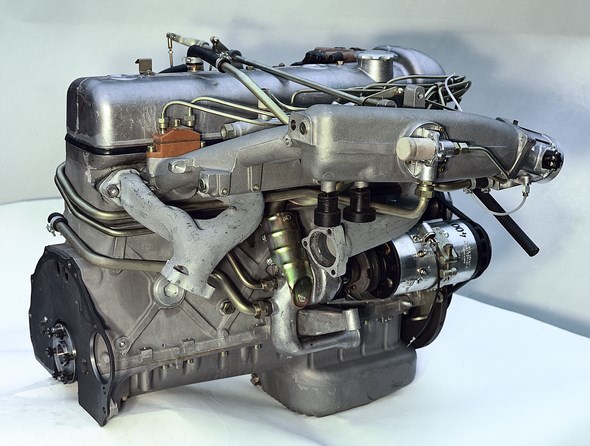

Mercedes-Benz Motor Typ 300 SEb

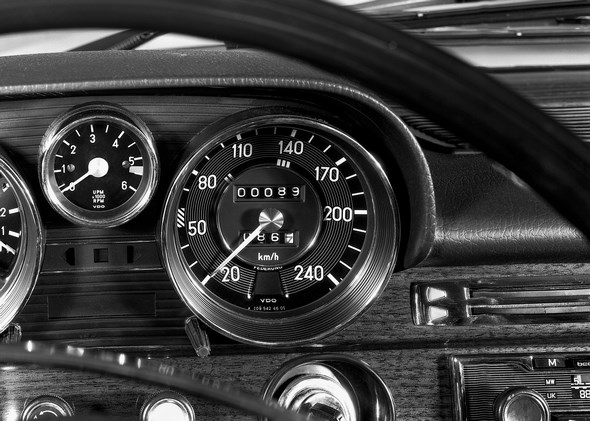

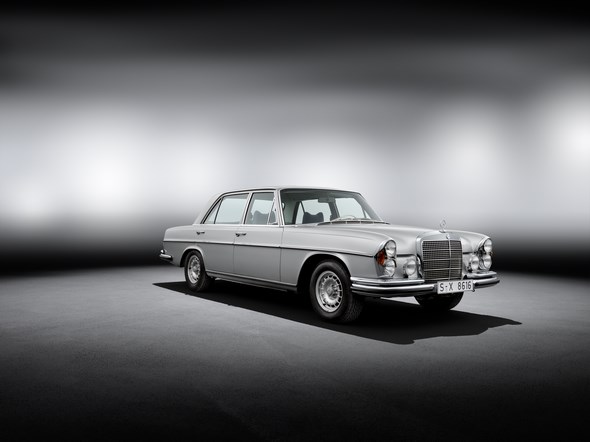

Mercedes-Benz Typ 300 SEL 6,3 Liter, 1967 - 1972.

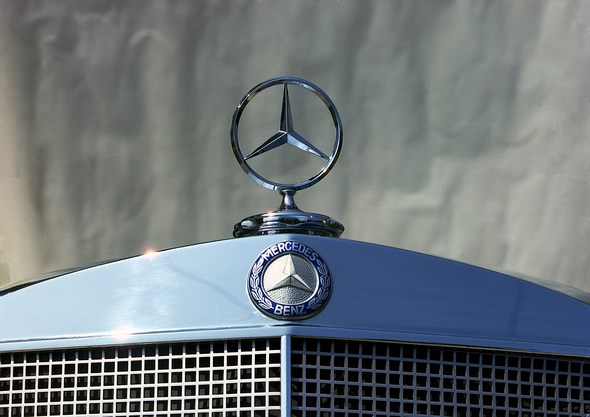

Mercedes-Benz S-Klasse-Limousine der Baureihe 108.

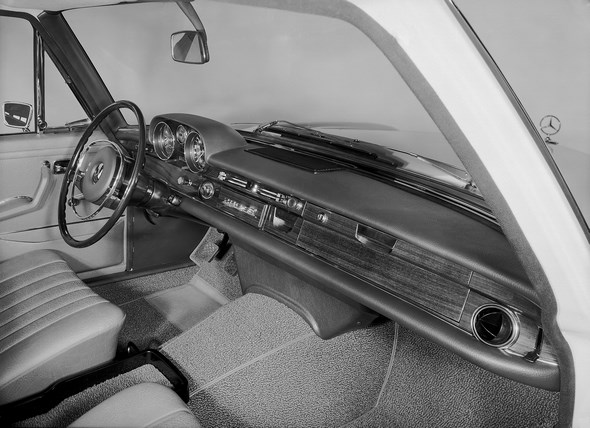

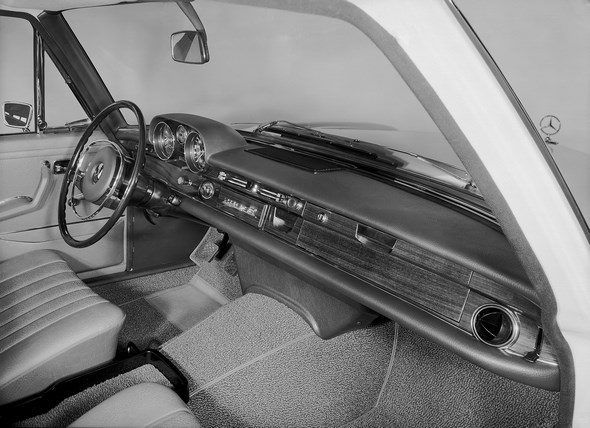

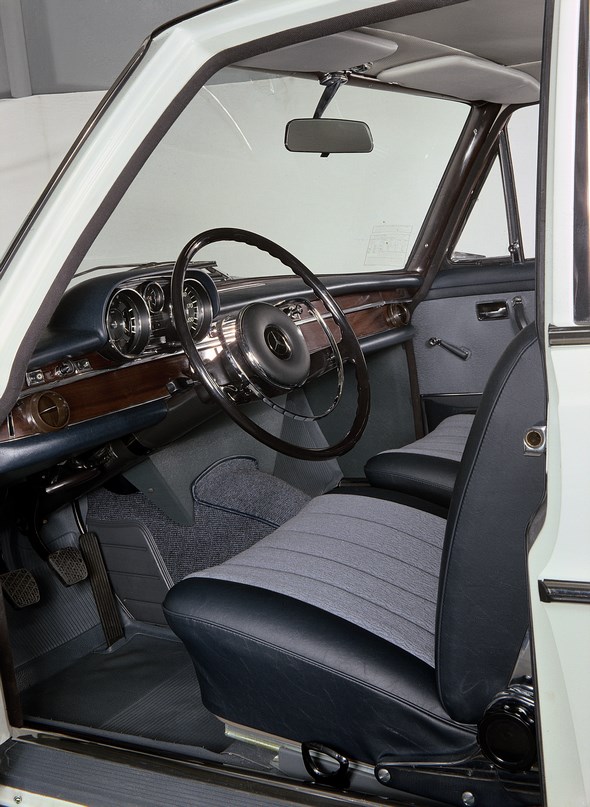

Armaturen, Mercedes-Benz Typ 280 SE aus dem Jahre 1967

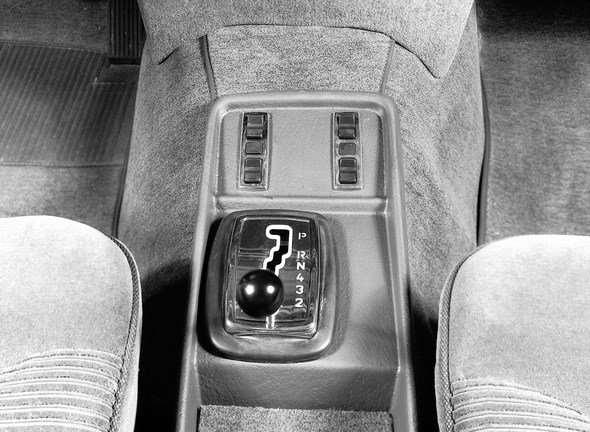

Mercedes-Benz Typ 300 SEL 6.3 der Baureihe 109

Mercedes-Benz Typ 300 SEL 6.3 der Baureihe 109

Überschlagsversuch auf dem Prüfgelände in Sindelfingen mit Mercedes-Benz Typ 250 S. Zufriedenheit bei Prof. Huber, damals zuständig für Rohbauuntersuchungen, über die geringen Türöffnungskräfte dieses 250 S nach dem Überschlag, 1966.

00004173
2060197066_6c5601d919_b
21cvvro
24063022fullph6
2h570ie
38200632613pm86061ph6
5c27_3[1]
5ceb_3[1]
912012U61369_(Large)
DCP_2178
DCP_2179
DCP_2180
DCP_2181
DCP_2182
DCP_2183
DCP_2184
DCP_2185
DCP_2186
DCP_2187
DCP_2188
DCP_2189
DCP_2190
DCP_2191
DCP_2192
DCP_2193
DCP_2194
DCP_2195
DCP_2197
DCP_2198
DCP_2201
DCP_2202
DCP_2203
DCP_2204
DCP_2205
DCP_2206
DCP_2207
DCP_2209
DCP_2211
DCP_2213
DCP_2214
DCP_2216
DCP_2218
DCP_2219
DCP_2220
DCP_2221
DCP_2222
DCP_2223
DCP_2224
DCP_2225
DCP_2226
DCP_2227
DCP_2228
DCP_2229
DCP_2230
DCP_2231
DCP_2232
DCP_2234
DCP_2235
DCP_2236
DCP_2237
DCP_2238
DCP_2239
DCP_2240
DCP_2241
DCP_2242
DCP_2243
DCP_2244
DCP_2245
DCP_2247
DCP_2248
DCP_2249
DCP_2250
DCP_2251
DCP_2252
DCP_2254
DCP_2255
DCP_2256
DCP_2257
DCP_2258
DCP_2259
DCP_2260
DCP_2261
DCP_2262
DCP_2263
DCP_2264
DCP_2265
DCP_2266
DCP_2267
DCP_2268
DCP_2269
W108Pickup
braunlorinserjc6bp6
d929_27
fa64_27
image_17776_0
img0030kla8ul
post-77032-1202013159795824300
untitled
wm8413a5nf
436792_714237_4338_2940_13079_a98f3382
00000596
00000596_0
0015
0015_0
0021_g
0021_g_0
0023
0023_0
0024
0024_0
0051
0051_0
021_21
021_21_0
1081
1081_0
1082
1082_0
1083
1083_0
1084
1084_0
1085
1085_0
1086
1086_0
1087
1087_0
2
200dl671
200dl671_0
230s673
230s673_0
2_0
3
300seawm
300seawm_0
300sel_2
300sel_2_0
300sel_3
300sel_3_0
300sel_4
300sel_4_0
300sel_5
300sel_5_0
3_0
500big_w108-medium
507737a2002f6807_large
507737a2002f6807_large_0
634
634_0
64914eee
64914eee_0
885797u30897
885797u30897_0
885822u30887_large
885822u30887_large_0
886902u40207_large
886902u40207_large_0
886913u30898_large
886913u30898_large_0
886924u33863_large
886924u33863_large_0
886935u31909_large
886935u31909_large_0
886946u57378_large
886946u57378_large_0
886984u61440_large
886984u61440_large_0
887035u77944_large
887035u77944_large_0
887056u77943_large
887056u77943_large_0
887078si7157-9
887078si7157-9_0
887166c8424_large
887166c8424_large_0
887190c10794_large
887285u1528_large
887285u1528_large_0
887296u1784_large
887307u1534_large
ads
adt
dsc03576
f20e7bc8
imgp08619ds
jd6000491fw
mb10gr
mb220se_1959
mb250c_1967
mb2gr
mb300sel3-51971
mbhistoric_w100c
mbhistoric_w108c
mbhistoric_w109t
mbhistoric_w111sb
mbhistoric_w111stretch
ornbau05g-34
p1010009
p9210091
pb030131
sgs20w126-002
smallmerc
w108-10
w108-11
w108-12
w108-13
w108-14
w108-15
w108-16
w108-17
w108-18
w108-19
w108-2
w108-20
w108-21
w108-22
w108-23
w108-3
w108-4
w108-5
w108-6
w108-7
w108-8
w108-9
w108
OLYMPUS DIGITAL CAMERA

1234101112►

Leave a Reply Cancel reply

You must be logged in to post a comment.

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Random Quote

Imagination is more important than knowledge.

— Albert Einstein

Polls

Does Mercedes have too many models/classes right now?

View Results

Loading ... Loading ...
  • Polls Archive

TuningLinks

  • A.R.T.
  • AMG
  • Brabus
  • Carat by Duchatelet
  • Carlsson
  • Inden design
  • Kleemann
  • Koenig-Specials
  • Lorinser
  • Mariani styling garage
  • Mosselman
  • Renntech
  • Styling Garage SGS
  • Ullrich
  • Väth styling
  • VH-Tuning
  • Wald

Copyright Mercedes 500SEC.com 2021 | Theme by ThemeinProgress | Proudly powered by WordPress
